degradation
Aggregation and Precipitation: Physical Loss of Peptide from Solution
Aggregation removes peptide from solution without altering its chemistry, so analysis of the dissolved fraction reads normal. Risk factors, detection methods and an investigation procedure.
Peptide solutions aggregate because dissolved chains expose hydrophobic surface that is more stable buried against another chain than against water, and precipitate when the resulting assemblies outgrow what the solvent will hold. Nothing in the molecule is broken: the covalent structure is unchanged, and the peptide is lost to availability rather than to chemistry 1. That distinction governs everything below, including why the standard check for degradation will not report it.
Aggregation against chemical degradation
The chemical routes are set out in the degradation-pathways entry in this cluster and are not repeated here. What separates aggregation from all of them is that no bond in the peptide chain is made or broken. Monomer recovered from an aggregate, where recovery is possible at all, is the same molecule that entered it 1.
The consequence is analytical, and it is the most useful thing to understand about this route. A deconvoluted intact mass reports the covalent structure of whatever dissolved material reaches the instrument. Aggregated material is largely absent from the sample that reaches the instrument — removed by the centrifugation or filtration sample preparation applies — or dissociates under the denaturing conditions of the measurement. Either way the spectrum shows monomer indistinguishable from the reference while the bulk of the peptide sits elsewhere 12. A clean spectrum answers whether the chemistry has changed, and nothing else.
So low recovery alongside clean chemical analysis should raise aggregation early rather than late. Assemblies held by physical association can later acquire covalent links, but the initiating event remains physical and the conditions to correct are physical ones 1.
Mechanism in outline
A peptide in solution samples a population of conformations rather than occupying one. In compact states, hydrophobic side chains are shielded from solvent; in partially unfolded or extended states they are exposed. Exposed nonpolar surface is thermodynamically expensive, and burying it against the equivalent surface of a neighbouring chain removes that cost 12. Association follows from this alone: no chemical change permits it, and no defect in the material is implied.

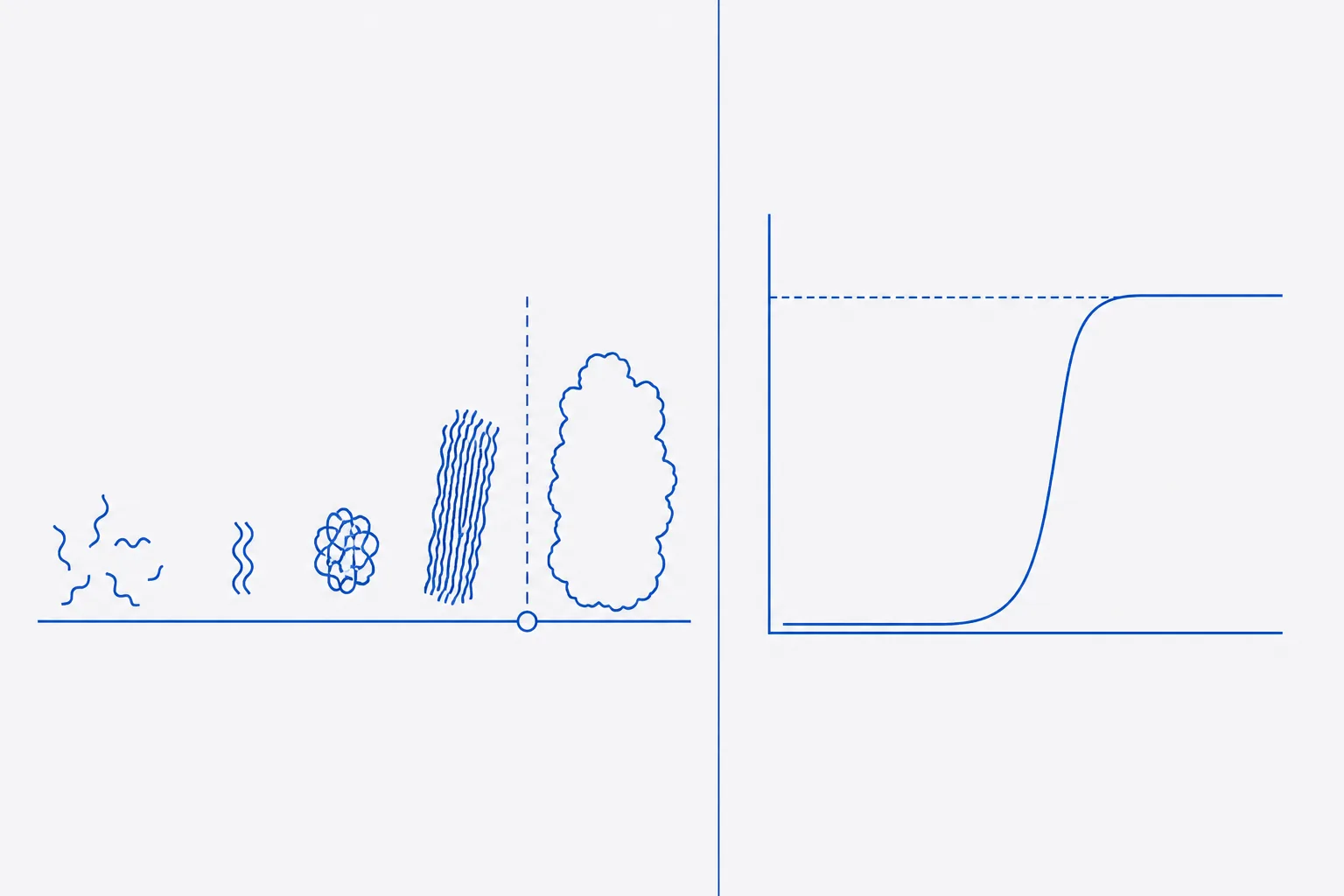

The earliest associations are reversible dimers and small oligomers. The transition that matters is nucleation: once a small assembly adopts an ordered arrangement — commonly an intermolecular beta-sheet, backbone hydrogen bonds running between chains rather than within them — it presents a template, and further chains add to the ends of that structure far faster than new nuclei form independently 2.
The template is what makes the process self-accelerating. Growth rate depends on the number of growth-competent ends, which growth itself increases and fragmentation of existing assemblies increases again. The observable form is a long lag in which little appears to change, followed by a steep growth phase 2. The practical consequence: a preparation can be examined repeatedly over weeks, look unchanged each time, then fail over a far shorter interval with nothing in storage to account for it. Stability across several inspections is not evidence of stability.
Sequence and process risk factors
Propensity is partly a property of the sequence and partly of what is done to it. High hydrophobicity, a backbone disposed to beta-sheet and low net charge at the working pH all raise risk, and the three tend to travel together 2. None can be altered after synthesis.
Net charge is where practice most often goes wrong, being the one sequence-related factor that handling controls. Like charges on neighbouring chains repel, and that repulsion holds a dissolved population apart. Net charge passes through zero at the isoelectric point, repulsion goes with it, and solubility is usually at its minimum there 3. A buffer chosen for reasons unconnected to the peptide — on the shelf, or suited to a downstream assay — landing near the pI of that sequence is the commonest avoidable cause of aggregation. Moving away from pI in either direction costs nothing.
| Factor | Mechanism | Control |
|---|---|---|
| High hydrophobicity | More nonpolar surface exposed in partially unfolded states | Fixed at synthesis. Manage concentration and interfaces instead |
| Beta-sheet propensity | Supports the ordered intermolecular arrangement that templates growth | Fixed at synthesis. Treat as higher risk; inspect more often |
| Low net charge at working pH | Weak electrostatic repulsion between chains | Choose a pH that carries the sequence away from charge neutrality |
| pH near the isoelectric point | Net charge near zero; solubility minimum | Establish the pI before choosing the buffer, not after the failure |
| Concentration | Encounter frequency between chains rises steeply with it | Lowest workable concentration; dilute early |
| Agitation and shear | Mechanical energy; continual renewal of the air–liquid interface | Do not vortex; avoid shaking, pumping, rough transport |
| Air–liquid interface | Chains adsorb and unfold there, then desorb into bulk as nuclei | Minimise headspace; avoid foaming and repeated inversion |
| Freeze–thaw cycling | Ice–water interface, freeze-concentration, buffer pH shift on freezing | Aliquot to single use so cycle count never arises |
| Temperature excursion | Raises the population of partially unfolded conformers | Hold at the stated condition; log excursions |
| Metal and particulate contamination | Foreign surfaces act as heterogeneous nucleation sites | Avoid metal contact; treat shed filter or glass debris as a cause |
Interfaces deserve emphasis because they are easy to overlook. Adsorption at an air–liquid or solid–liquid boundary partially unfolds the adsorbed chain, and material returning from that boundary into bulk is already in the state that associates readily 3. The visible outcome is often a film at the meniscus or a haze beginning at the wall.
Visible and invisible aggregate
Precipitate and cloudiness are late-stage observations. Association begins with soluble species — dimers, small oligomers, then submicron assemblies — that pass through a filter and scatter too little light to alter the appearance of the solution. Visible turbidity appears only once assemblies are large and numerous enough to scatter appreciably, and settled precipitate later still 3.
The operational rule follows: a clear solution is not evidence of monomeric material. Visual inspection is the cheapest check available and the last to report, so a negative result carries very little information. A positive result is conclusive and immediate, but where it matters the question is answered only by a method that sees the soluble fraction.
Detection methods compared
| Method | What it sees | Limitation |
|---|---|---|
| Visual inspection, light and dark backgrounds | Visible precipitate, opalescence, fibres, gel, film at the meniscus, wall deposit | Reports only the final stage. A clear result is close to uninformative |
| Filtration mass balance | The particulate fraction, by assay before and after filtration at a stated pore size | Cannot distinguish aggregate from other particulate; the membrane adsorbs peptide, so a filter-only control on fresh reference is mandatory |
| Size-exclusion chromatography | Loss of monomer peak area and any resolvable soluble oligomer, against a reference run | Large aggregate can be retained on the frit and never elute, under-reporting total loss; mobile phase can dissociate weak assemblies |
| Dynamic light scattering | Hydrodynamic size distribution, sensitive to a few large species | Intensity weighting lets a trace of large material dominate; poor resolution between similar sizes; not a mass measurement |
| Thioflavin-based fluorescence | Ordered amyloid-type assembly specifically, and its kinetics in real time | Blind to amorphous aggregate; the dye is an added variable and needs a peptide-free blank |
No method covers the range from soluble dimer to settled solid, so pair them: one reporting recovered mass, with one reporting large species. Disagreement is informative — mass lost with nothing large detected points at adsorption to the container rather than aggregation 3.
Control measures and their limits
- Work away from the isoelectric point. Limited by what downstream work tolerates, and by the chemical routes that accelerate at the pH chosen instead.
- Prepare at the lowest workable concentration. Limited where a concentrated stock is required, and offset by the adsorptive losses dilute solutions suffer.
- Dissolve gently: solvent down the wall, time, swirl rather than vortex. Limited by sequences that will not dissolve without energy input.
- Minimise headspace and avoid foaming. Limited by fill volumes fixed at supply.
- Aliquot to single use. Limited by the session it costs and the higher surface-to-volume ratio of small aliquots.
- Filter or centrifuge before use. Removes existing particulate but not the tendency — clarification, not correction.
- Avoid metal contact and use clean containers. Limited by equipment that cannot be changed.
- Consider a surfactant to occupy the interface, a chelator, or sugars and polyols. Each is an added variable that may interfere with the assay or degrade on storage.
The honest position is that aggregation is frequently irreversible. An ordered assembly can be more thermodynamically stable than the monomer that formed it, and the gentle measures reached for first — warming, dilution, brief agitation — redisperse particulate without returning it to solution as usable monomer 2. Recovery requires denaturing conditions that must then be removed under control, rarely worth the effort at laboratory scale 4. Treat a suspected aggregation event as a loss to be explained rather than a preparation to be rescued, and prevention as the only reliable approach 1.
Procedure: investigating a suspected aggregation failure
- Stop handling the preparation. Do not vortex, warm, dilute or filter it — each destroys evidence and changes every measurement that follows.
- Inspect the container undisturbed against a light and a dark background. Record clarity, opalescence, particulate, fibres, film at the meniscus, deposit on wall or base.
- Record the history: solvent and buffer, pH, concentration as prepared, container material, fill volume and headspace, agitation and transport, freeze–thaw count, temperature excursions, elapsed time in solution.
- Compare the working pH against the isoelectric point of the sequence. If they are close, that is the first hypothesis and the cheapest to test.
- Assay the unfiltered solution and a portion passed through a filter of stated pore size, with a filter-only control on fresh reference material. The difference is the particulate fraction.
- Run size-exclusion chromatography against a fresh reference, same column and mobile phase, same day. Monomer loss with no new low-mass species is the characteristic result.
- Where soluble species are suspected but not resolved, add dynamic light scattering on an unfiltered sample. Read it as presence or absence of large species, not as a quantity.
- Acquire an intact deconvoluted mass spectrum to exclude a chemical route. Normal mass alongside reduced recovery supports the physical explanation.
- Where the sequence has beta-sheet propensity and an ordered assembly is suspected, run thioflavin-based fluorescence against a peptide-free dye blank.
- Test the hypothesis on fresh material, not the failed preparation. Prepare matched aliquots differing in one variable only — pH away from pI, lower concentration, no agitation — hold them identically and re-measure on a fixed schedule.
- Record the outcome and correct the implicated variable. Aggregation attributed to a named condition is preventable; a note that the solution went cloudy is not.
The endpoint is a named physical condition and a corrected preparation method, not a general finding that the sequence is difficult. Where no variable can be implicated, the remaining controls are smaller volumes prepared closer to the point of use and shorter time in solution — the working life in solution is shorter than the life of the dried solid 4.
