Cold Chain and Temperature Excursions: Transport, Receipt and Assessment Procedure
What ambient transit costs lyophilised material, and why a solution has no equivalent tolerance. Receipt recording, monitoring devices, cake appearance as thermal evidence, and a procedure for assessing an excursion.
Usually, and the reason is kinetic rather than reassuring. Lyophilised peptide travels at ambient because degradation in the dry solid is slow enough that a few days of warmth consumes only a small fraction of the material's useful life. That is a statement about rates, not a guarantee, and it holds for many sequences rather than all 13. The same material in solution has no such tolerance. Whether a given consignment arrived intact is a question about its thermal history, answerable only from what was recorded when the box was opened.
Why the dry solid travels and the solution does not
Water is the reactant in the fastest degradation routes available to a peptide: hydrolysis of the backbone, and deamidation of asparagine and glutamine through a cyclic imide. In the dried solid those routes continue at a rate lower by orders of magnitude, because the participating water is largely absent and the molecules are immobilised in a rigid amorphous matrix 13. Warmth accelerates what remains. It does not restore the solution-phase rate.
That is the argument for shipping dry material at ambient: over the days-scale interval of a consignment, the loss incurred in the solid state is small against the loss accumulated over months of cold storage afterwards. The trade is deliberate and usually favourable — but not free, and no subsequent refrigeration recovers it.
A solution has none of this protection. Water is in excess, the peptide is conformationally mobile, and hydrolysis, deamidation and oxidation proceed at full temperature-dependent rate. Interfaces are available too — air–liquid, liquid–container — at which unfolding and aggregation initiate, and aggregation is effectively irreversible once seeded 4. Ambient transit of a solution is a different regime, not a smaller cost.
Two qualifications keep this honest. The tolerance is sequence- and formulation-dependent: a cake with high residual moisture, a low glass transition temperature, or a sequence rich in labile residues carries less margin 23. And a rate argument says nothing about a single severe event.
Receipt inspection and recording procedure
What can be established about a consignment is fixed at the moment it is opened. Coolant state, packaging condition and indicator readings are transient: they degrade within minutes of the box reaching the bench.
- Record date and time of receipt, and elapsed time since despatch where the documentation states it.
- Record the condition of the outer packaging before opening: crushing, water staining, punctures, and the state of any temperature-sensitive label on the exterior.
- Record the presence and state of coolant — gel packs frozen, partly thawed or liquid; dry ice remaining or sublimed. Exhausted coolant establishes that the pack expired at some unknown point, not when.
- Read any indicator or logger before removing it from the package, and record the reading verbatim, including a negative one. An untriggered indicator is a finding worth keeping.
- Record insulation condition and vial position relative to the coolant. A vial against dry ice has a different history from one in the opposite corner.
- Inspect each vial through the glass without opening it. Record the cake as intact, shrunken, collapsed, fused, discoloured, or displaced as powder onto the wall and closure, and check each closure for a tight crimp — a cap that rotates is grounds for rejection.
- Record identity, quantity and lot reference against the documentation, with the analysis date of any certificate.
- Transfer to storage sealed. Inspection through glass answers every question receipt can answer.
Where steps 2 to 6 produced an adverse observation, the assessment procedure below runs before the material enters use, and its outcome is filed against the lot reference.
Cake appearance as thermal evidence
Displaced powder and a collapsed cake are different observations, and conflating them is the commonest error at receipt. A cake broken loose from the vial base and spread over the wall and closure is a mechanical artefact of vibration: it complicates quantitative transfer and carries no thermal information.

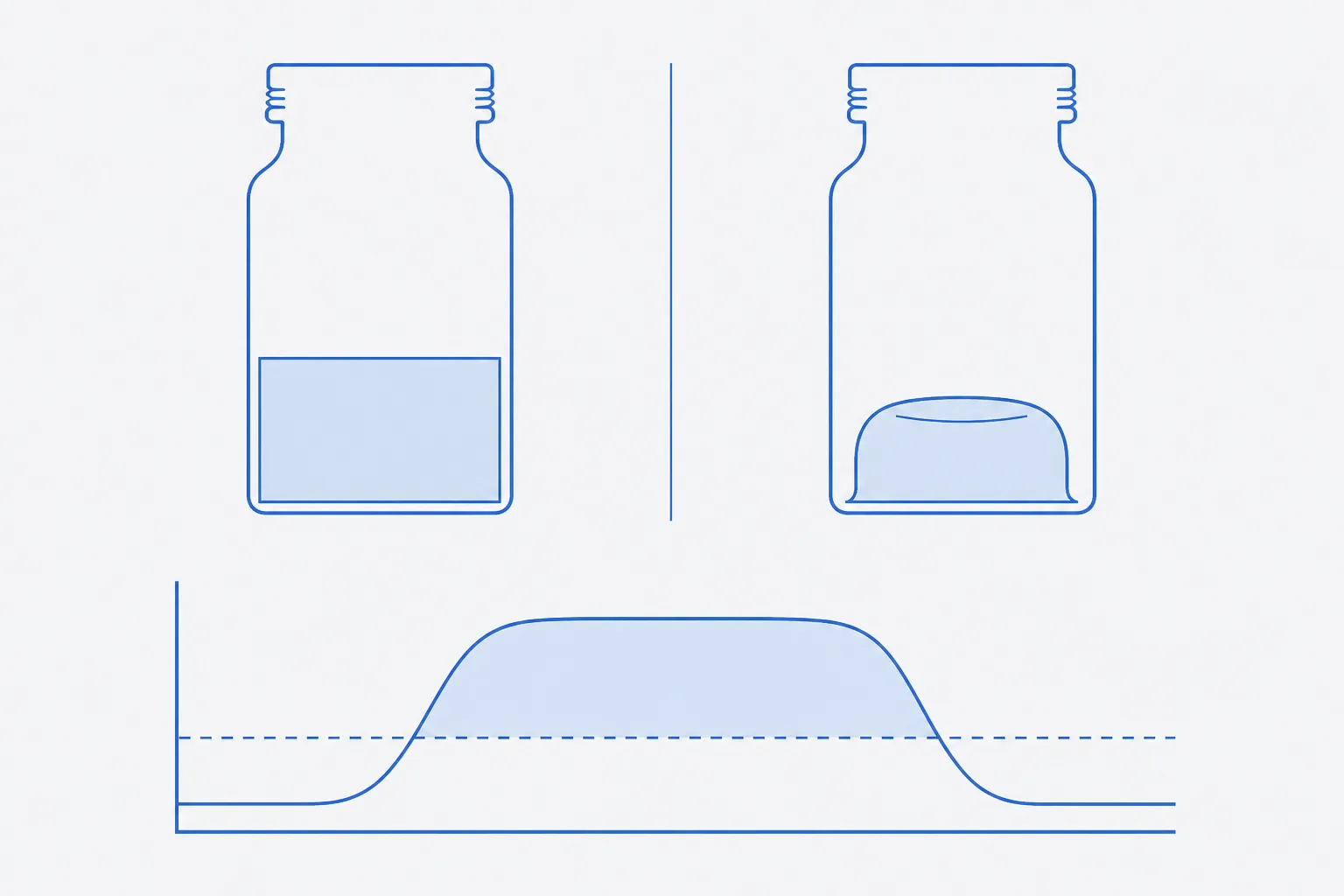

Collapse is thermal. An amorphous cake is a rigid glass below its glass transition temperature; warmed above it, the matrix acquires viscous mobility and the porous structure formed during drying can no longer support itself. The result is a cake shrunken away from the vial wall, slumped into a denser mass of reduced volume, or carrying a glassy, melted-and-resolidified surface 23.
That appearance is genuinely diagnostic, and it is the only evidence of a thermal event available without instrumentation. It establishes that the material exceeded the collapse temperature of its formulation, for long enough to permit flow, irrespective of what any indicator reports or whether one was fitted. A collapsed cake alongside an untriggered indicator means the threshold sat above the collapse temperature, or the device failed.
What collapse does not do is quantify: it reports neither peak, nor duration, nor how much intact peptide remains. It also brings consequences of its own — reduced surface area slows reconstitution, and residual moisture redistributes within the denser mass 3. Absence of collapse is correspondingly weak evidence: a formulation with a high collapse temperature passes through a substantial excursion unchanged in appearance.
Temperature monitoring options and their limits
The distinction that matters is between a device reporting an event and one reporting a history. Damage is a function of temperature and time together; a device capturing only the first leaves the more consequential variable unmeasured.
| Device | What it establishes | What it cannot establish | Practical note |
|---|---|---|---|
| Single-use threshold indicator | That a stated temperature was exceeded at least once, or was not | Peak, duration above the threshold, and when it occurred | Cheapest and commonest. A pass/fail gate, not an input to an assessment |
| Min/max recorder | The extremes reached across the monitored interval | How long either extreme was held, and the profile between them | A brief spike and a sustained hold at the same peak read identically |
| Continuous data logger | The temperature–time profile; magnitude and duration read directly | Conditions inside the vial, as against the package point where the probe sat | The only device supporting a quantitative assessment. Record sampling interval and probe position |
| Storage unit alarm and log | Deviation of a unit after receipt, with time stamps | Temperature of the contents, which lags the air by an interval set by thermal mass | Confirm the log is retrievable before it is needed |
A threshold indicator is therefore a screening device. Read a triggered one as "an excursion occurred, size unknown", and an untriggered one as "no excursion above that threshold at that point in the package". Neither supplies the duration the assessment needs.
Assessing an excursion
An excursion assessment is a structured record of what happened and what was concluded from it. Run it as steps, and write the output down even where the conclusion is that the material is fit for use — an unrecorded decision is indistinguishable later from no decision.
- Establish magnitude. Record the highest or lowest temperature evidenced, its source, and that source's reliability — logger trace, min/max reading, or inference from coolant state.
- Establish duration. Record the interval spent outside the intended condition, or state explicitly that it is unknown. Duration rather than peak determines the extent of degradation, so an unknown duration is the assessment's largest gap.
- Establish physical state. Record collapse, shrinkage, fusion or discolouration, and whether the material was dry solid throughout or in solution at any point. Solution-phase material is assessed on a stricter basis.
- Consider the sequence. Note residues of known lability — asparagine and glutamine for deamidation, methionine, cysteine and tryptophan for oxidation. This gives the direction of the risk, not its size.
- Consider formulation and container: desiccant state, closure integrity, and whether the container stayed sealed.
- State the conclusion with its basis — what is concluded, what supports it, what remains unknown. A conclusion without its basis is unusable by whoever reads the file next.
- Flag the lot so downstream results can be interpreted against the excursion, and carry the flag into aliquots and derived solutions.
- Where the excursion was severe or its duration undocumented, verify analytically rather than assessing on paper.
| Evidence available | What can be concluded | What must be recorded as unknown |
|---|---|---|
| Logger trace spanning the transit | Magnitude and duration of every deviation, and the profile shape | Temperature inside the vial; any interval before the logger started |
| Threshold indicator triggered | A stated limit was crossed at some point | Peak, duration and timing — the variables the assessment needs |
| Threshold indicator untriggered | No excursion above that threshold at the probe position | Excursions below it; deviation after the device was read |
| Coolant exhausted, no indicator | The pack's capacity ran out before arrival | When it ran out, and so the whole duration at ambient |
| Cake collapsed or fused | The collapse temperature was exceeded, long enough to permit flow | Peak, duration, and the extent of chemical degradation |
| Cake intact, no monitoring data | No thermal event severe enough to deform the cake | Everything else — appearance does not report chemical change |
Storage unit failure procedure
A freezer failure differs from a transit excursion in one respect that works in your favour: the material is in your possession, so exposure can be stopped and both magnitude and duration are often recoverable from the unit's log. Stop the exposure first, reconstruct the history second.
- Move the contents to a functioning unit at the intended temperature before anything else. Transfer sealed, inside the secondary containers, without opening a vial.
- Record the time of discovery, and from the alarm or log history the time the deviation began. Where no log exists, record the last time the unit was verified in specification — that interval is the outer bound.
- Record the highest temperature reached, distinguishing a measured air temperature from an assumption. A freezer that lost power does not immediately reach room temperature: thermal mass and door seals slow it, and the contents lag the air by longer again.
- Inspect a representative sample of vials through the glass for collapse, shrinkage, discolouration or interior moisture, and record the observation for the batch.
- Note whether any affected material was held as frozen solution rather than dry solid. Thawed contents are assessed on stricter terms.
- Replace desiccant in the affected space. A unit that partially defrosted has raised the humidity around its contents, and the sachet may now be exhausted.
- Run the excursion-assessment procedure above for each affected lot, and flag the records.
- Record the failure against the unit as well as the material. A unit that has failed once is a candidate for replacement, and the pattern is visible only if logged.
The limit of an excursion assessment
The honest position is narrow and worth stating plainly. Without stability data for that sequence, in that formulation, under those conditions of temperature and time, an excursion assessment is a judgement recorded with its reasoning. It is not a determination that the material is unaffected. The literature supports the general ranking — dry beats wet, cold beats warm, short beats long — and the mechanisms of damage, but it does not license a numerical tolerance for an unstudied peptide 13.
Two practices follow. Do not import permitted excursion limits from elsewhere: a stated tolerance belongs to the formulation it was generated for, and moving it to a different peptide, fill and cake produces a number with nothing behind it. And where doubt remains, flag rather than discard or silently accept. Material of uncertain history stays usable for many purposes provided the uncertainty travels with it — recorded against the lot, carried into every aliquot, retrievable when a result later looks anomalous.
The failure this guards against is an unexplained result months later, with nothing on file about the consignment that arrived warm. An assessment need not be conclusive to earn its place. It has to exist, show its reasoning, and be findable from the lot.
