Weighing and Handling Hygroscopic Solids: Moisture, Static and the Case for Not Weighing

Weigh lyophilised peptide only where there is no alternative. Where one exists, dissolve the entire supplied contents of the vial in a measured volume of solvent: that removes the transfer and the weighing together. Where a weighing is unavoidable, equilibrate the sealed vial before opening, work in dry air, neutralise static at the balance, weigh by difference, and record what the instrument displayed rather than what was intended. Lyophilised peptide is an amorphous, hygroscopic, low-density solid 13, and each of those properties attacks the measurement by a different route.

Three compounding problems

Three properties act at once. The first is hygroscopicity: an amorphous cake has high specific surface area and no lattice to exclude water, so it takes moisture from room air readily and holds it, the absorbed water plasticising the solid and accelerating degradation in what remains 13. On the balance this appears as a mass that rises while it is being read.

The second is scale. A balance's error is roughly fixed in absolute terms, set by repeatability rather than by the digits displayed, so as a fraction of the load it grows without limit as the load falls. An uncertainty negligible against a gram is a material fraction of a few milligrams.

The third is static. A light, non-conducting powder charges readily against a spatula, a plastic vessel or moving dry air, and the charge does not dissipate because nothing touching it conducts 13. Charged particles climb the vessel wall, adhere to the spatula, and exert a force on the pan that the instrument reports as mass. Dry air suppresses uptake but maximises static, humid air the reverse, so the controls must be procedural rather than environmental.

Moisture uptake in practice

Equilibration is a storage rule restated as a weighing rule, because here the consequence is arithmetic. A vial taken from cold storage sits below the dew point of laboratory air; opened cold, it condenses water onto the cake, which absorbs it while warming. That water is then weighed as peptide, and no later step removes it.

Drift is the diagnostic. A reading that settles, holds, then climbs steadily is not settling — the pan is gaining mass faster than instrument noise conceals it, and waiting makes it worse. Take the first stable reading, note the drift, and treat the value as an upper bound on dry mass. Erratic drift, or a shift when a hand approaches the shield, is electrostatic instead.

1. Prepare the balance first: level it, let it stabilise at ambient temperature, close the draught shield, run its calibration check.
2. Stand the sealed vial upright in a desiccator until it reaches ambient temperature — judged by the absence of external condensation, not by the clock.
3. Tap or briefly centrifuge it so that no solid remains on the closure.
4. Tare an antistatic vessel and confirm the zero holds. An empty vessel that drifts is reporting static, not moisture.
5. Pass vessel, spatula and vial through the ioniser.
6. Open in dry air, transfer in one deliberate movement, and reseal the source at once.
7. Take the first stable reading; if it climbs, record it and mark it an upper bound.
8. Reweigh the sealed source and take the difference where what matters is the mass transferred out.
9. Record the displayed value to full digits, without rounding towards the target.

Static control

Static is controlled by several measures applied together; each addresses a different part of the charging cycle.

• Ionising devices — a mains or piezoelectric ioniser directed at vessel, spatula and open vial. It removes accumulated charge rather than avoiding it, and is the most effective single measure.
• Antistatic vessels — conductive or dissipative boats, or glass, rather than untreated moulded plastic.
• No plastic scoops or spatulas for very small quantities: plastic charges by friction, then retains what it has charged.
• Controlled ambient humidity — very dry air maximises charging, humid air feeds the cake. Where both cannot be had, keep the air dry and neutralise the charge.
• Mechanical discipline — shield closed while reading, no brushing against gloves or surfaces.

Adhesion to plastic is a loss route in its own right, independent of charge, so vessel material is not a cosmetic choice 4. Static is diagnosable before it costs anything: an empty tared vessel that will not hold zero will not settle with patience.

The accuracy argument for not weighing

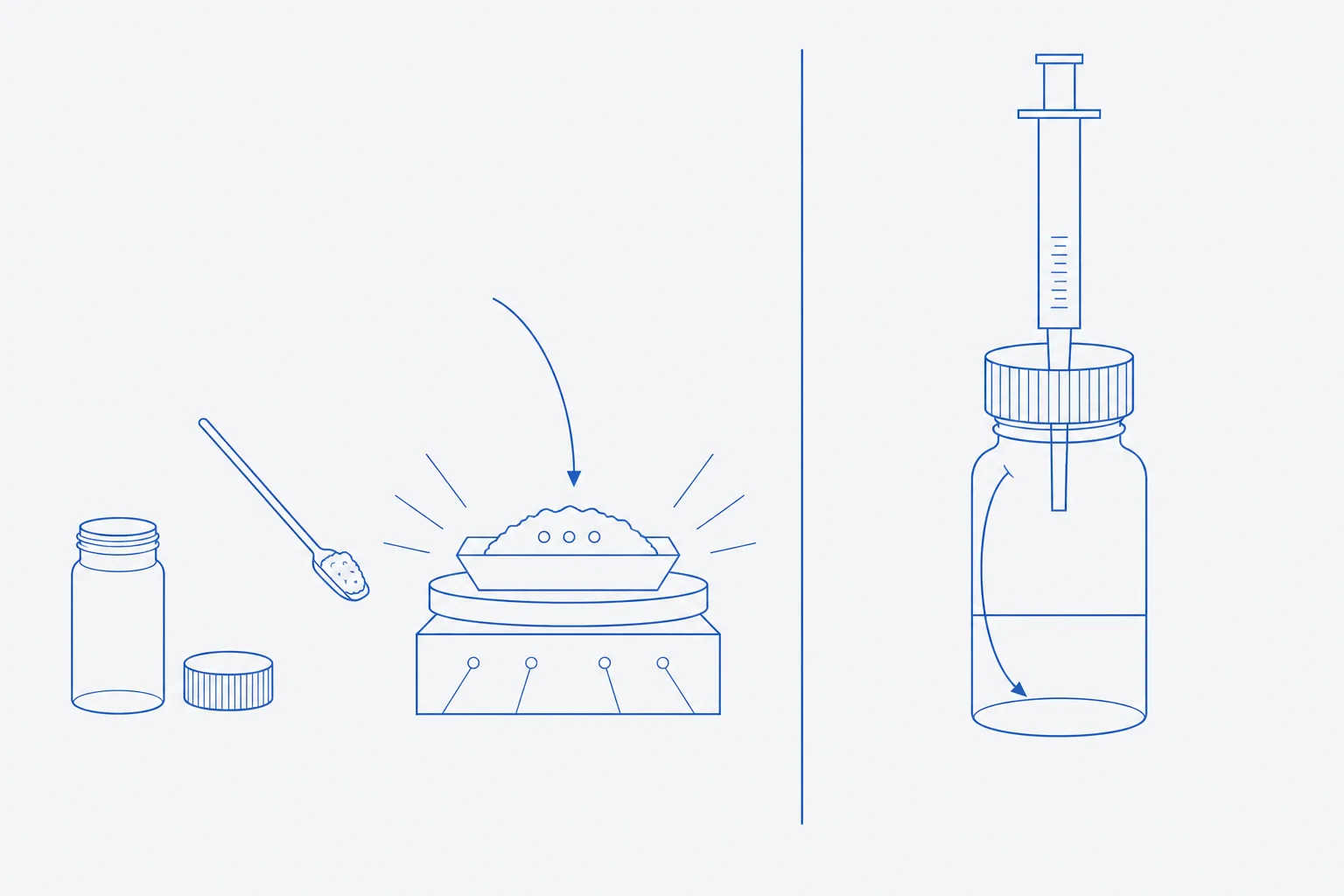

The most accurate way to handle a small quantity of hygroscopic solid is usually not to weigh it. The mass in the vial was determined once already, gravimetrically, under controlled conditions at fill; opening, scooping, transferring and weighing can only degrade that figure. Dissolving the whole contents in a known volume inherits the fill weighing intact and adds one volumetric measurement, which at this scale is far easier to perform accurately.

The route deletes both weak steps: the transfer, with its electrostatic and mechanical losses, and the weighing, whose relative error is largest where quantities are smallest. What remains is a volume — verifiable gravimetrically — and one exposure of the cake lasting seconds.

The cost is commitment. The vial becomes one solution at one concentration, cannot be recovered as a solid, and its stability clock starts at that moment. Where several concentrations are wanted the cost is usually illusory: prepare the stock once and reach the range by volumetric dilution, treated in the separate reference on stock solutions and dilution series. Weighing remains correct where separate solid portions are genuinely needed.

1. Equilibrate the sealed vial in a desiccator, as for a weighing.
2. Before opening, record the stated fill mass, lot reference, and stated net peptide content with its method and date.
3. Tap or centrifuge briefly so that all solid sits at the base.
4. Fix the target concentration and compute the solvent volume from the stated mass and content; never infer a mass from a volume already added.
5. Deliver the solvent down the vial wall rather than onto the cake, verifying the volume gravimetrically where accuracy matters.
6. Reseal and dissolve by gentle swirling and standing rather than vortexing, then inspect against light: undissolved material means the true concentration is below the computed one.
7. Label with concentration, mass basis, solvent and time, and aliquot immediately if the stock will be reused.

Balance selection and minimum weighable quantity

Two figures characterise a balance. Readability is the smallest increment displayed; repeatability is the spread of repeated readings of one load. Readability is the quoted number, repeatability the limiting one — an instrument displaying a digit it cannot reproduce offers precision that does not exist.

Minimum weighable quantity joins the two to a required accuracy: the smallest sample for which repeatability is an acceptable fraction of the reading. It is derived rather than specified, and follows from the tolerance the work demands — halve the permitted relative error and the smallest usable sample doubles. It is specific to the instrument in its location, since vibration, draughts and a flexing bench all degrade repeatability. A sample below that minimum has not been weighed badly; it has not been weighed usefully at all, and the response is a larger sample, a better instrument, or the whole-vial route.

Transfer loss and difference weighing

Everything weighed must also be moved, and the movement has losses of its own. Electrostatic migration carries material to the enclosure and the glove; adhesion keeps it on the spatula and around the rim. Neither is visible at these quantities, and both run one way: the receiving container gets less than the balance reported.

Difference weighing is the standard mitigation. Rather than weighing material into a vessel and assuming it all arrives, weigh the source before and after the transfer and take the difference; whatever stays behind is still on the source at the second reading. Two conditions: both readings must be matched — same vessel, same instrument, same session — so that drift in the zero cancels, and the source must be sealed between them, or the difference includes the moisture it gained while open. One limitation: the result is a difference of two larger readings, so repeatability enters twice. It removes transfer loss, not balance error.

Behaviour after first opening

An unopened vial and a part-used one are not the same source. The seal on an unopened vial has held since fill and encloses the headspace it was filled with, dry and sometimes inert. First opening replaces that with room air, and any reclosure is a weaker barrier than the original.

Three things change at that moment. The cake takes up moisture, which plasticises the amorphous solid, lowers its glass transition temperature and raises the degradation rate of everything remaining 3. The physical form is disturbed — a cake broken by a spatula presents far more surface. And the record diverges from the label, since the remaining mass is no longer the stated fill mass. A part-used vial is therefore a worse source than an unopened one, and worse again at each return.

Recording: nominal against actual

Nominal mass is what was intended, or what the label states; actual mass is what the instrument reported. Both belong in the record, kept apart. The characteristic failure is silent substitution — an entry reading 5.0 mg when 5.14 mg was weighed, because 5.0 mg was the plan. It biases every concentration derived from that stock, and no consistency check finds it.

Actual mass is still not peptide mass. The instrument weighs everything in the vessel: peptide, counterion, residual water and salt. The peptide fraction must be applied separately before any molar quantity is computed, and the counterion may have been exchanged since the certificate was issued, which changes that fraction 2. That correction, and the arithmetic carrying it into a concentration, belong to the separate reference on net peptide content and gross weight. Record the following against every weighing or whole-vial preparation.

• Date, operator, instrument identifier, and its last calibration check.
• Nominal target mass and actual mass as displayed, to full digits.
• Direct reading or difference, with both component readings where it is a difference.
• Whether drift was seen, in which direction, and whether the value is an upper bound.
• Whether ionisation was used, and the vessel material.
• Lot reference, stated fill mass, and stated net peptide content with its method and date.
• Whether the vial had been opened before, and roughly how often.
• For the whole-vial route: mass basis, solvent volume as measured, resulting concentration.

None of this makes a weighing more accurate; it makes its accuracy knowable, which is what matters when a result later looks wrong. A mass recorded with its conditions can be revisited — the drift noted at the time explains a concentration a few per cent high, where a bare figure leaves the discrepancy attributed to the assay. Often the strongest entry is the one recording that no weighing was performed at all: the vial dissolved whole, in a measured volume, with the fill weight carried forward as stated.
